Others have reached this point before (duh) but this is one of those right-of-passage points in the build process, so here are my photos of the parts.

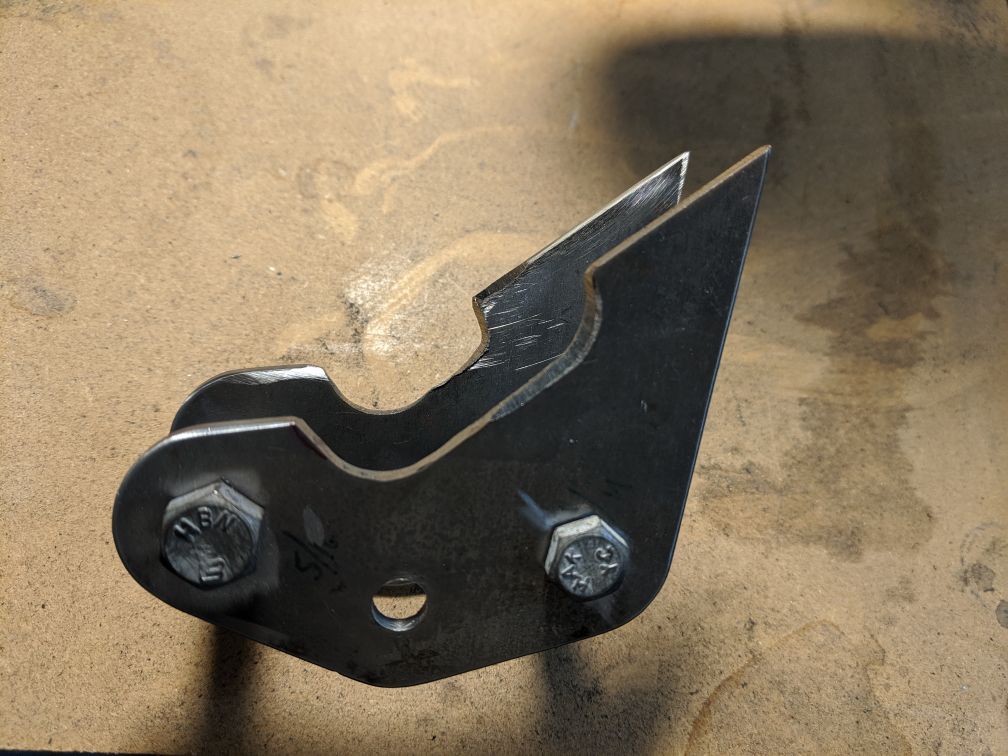

According to plans:

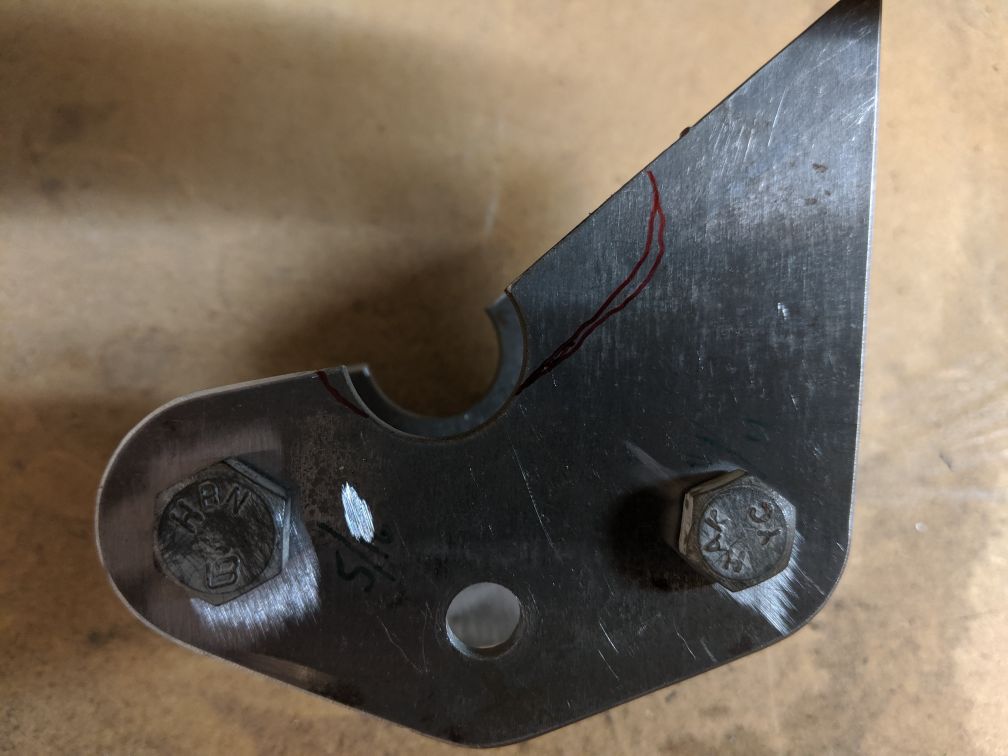

After fitting:

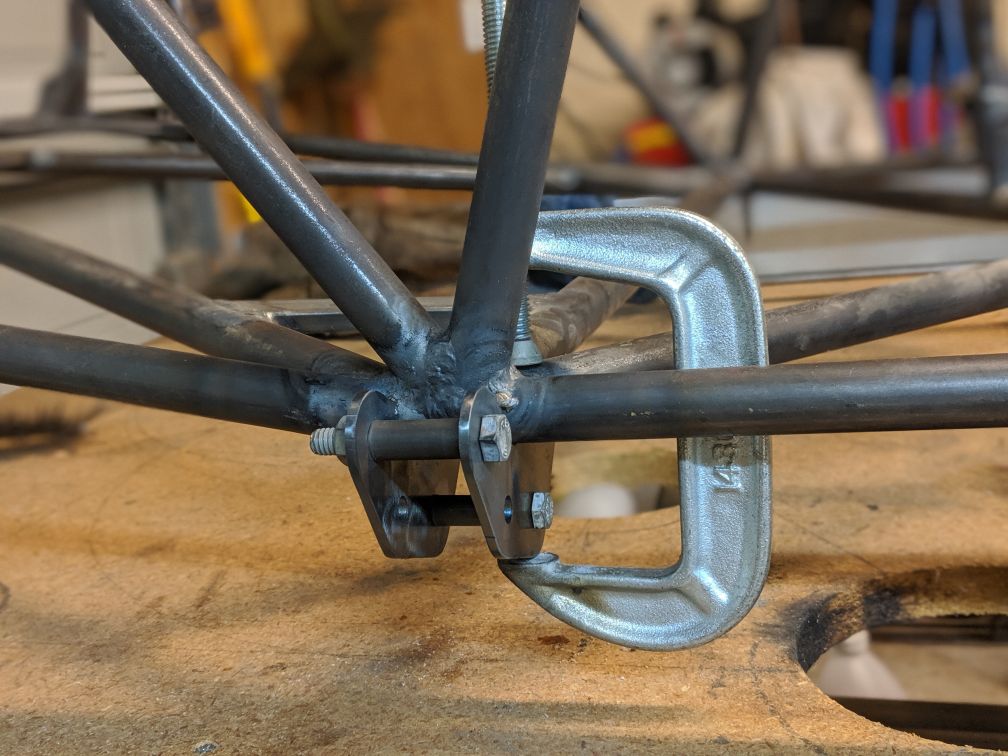

In place, with spacers:
What do you do with the gap between the plates and the cross member?
Forward Gear leg attach point
-
orchardair
- Posts: 215
- Joined: Thu Apr 08, 2010 4:56 pm
Forward Gear leg attach point
You do not have the required permissions to view the files attached to this post.
Hatz Classic plans# 136
-
jwhanson
- Posts: 96
- Joined: Tue Mar 16, 2010 11:55 pm
Re: Forward Gear leg attach point

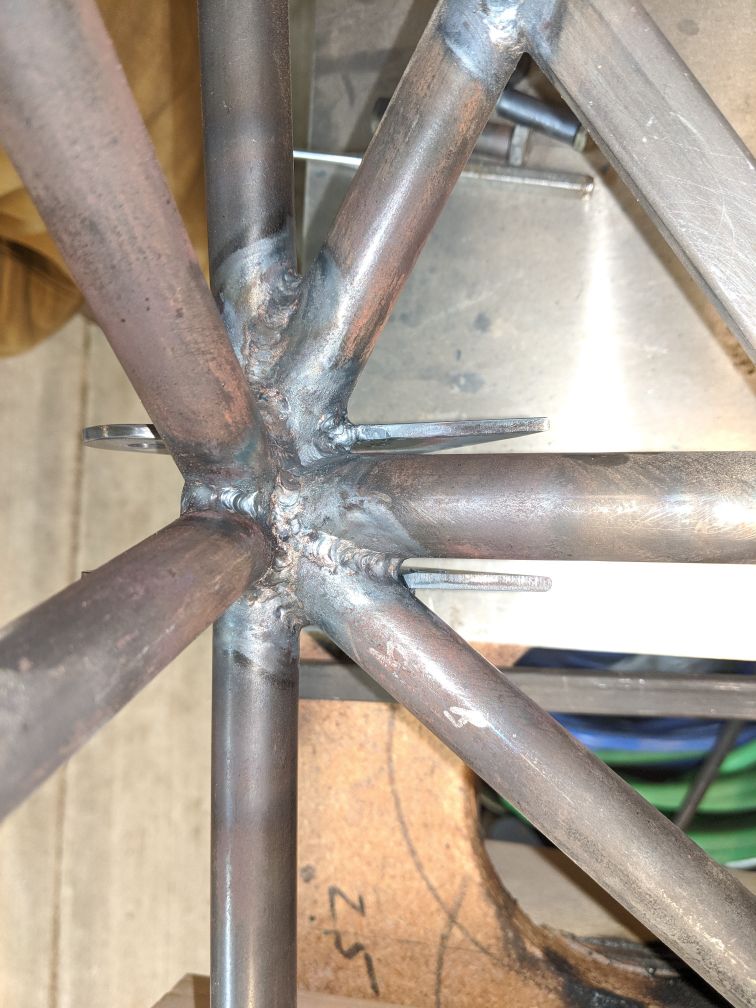

Heat them up, bend them in and weld them to the cross tube.
John Hanson
John Hanson
-
mmarien
- Posts: 178
- Joined: Thu Jul 23, 2015 9:50 am
- Location: Saskatoon, Saskatchewan, CANADA
Re: Forward Gear leg attach point

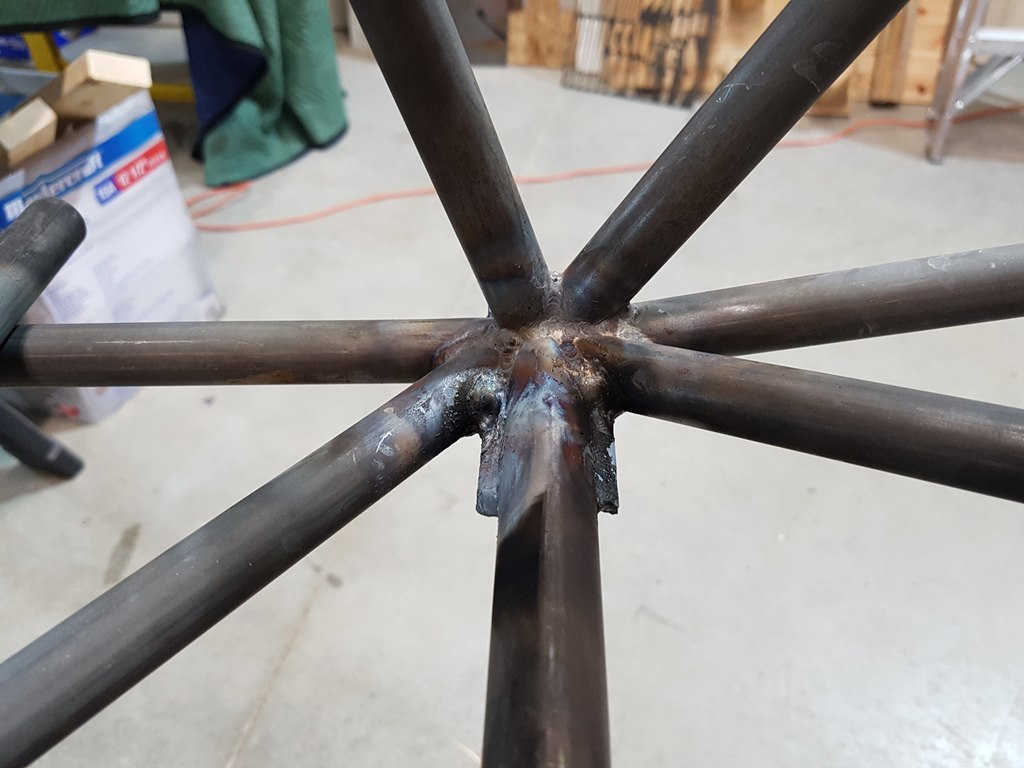

I used a piece of 090 4130 to fill the gap.
You do not have the required permissions to view the files attached to this post.
Murray Marien - HC 0180
Saskatoon Canada
